Stage Skins




Stage skins

Handcrafted from PVC board, Stage Skins’ backdrops provide a simple, styled and visually pleasing set for any stage or space. Fire rated, tough and modular, each tile is precision cut and can be assembled by hand using our connector plates.


Modular

The greatest asset of Stage Skins’ tiles is that they are modular. The tiles have a series of mounting holes and connector plates, giving them the ability to be connected together into numerous combinations.

Lights and Projection

There are 2 ways to make Stage Skins shine. The first is by using wash lights to transform the color of the tiles and set the atmosphere. The second is by using a projector to turn the tiles into a screen or artistic background.

Shapes

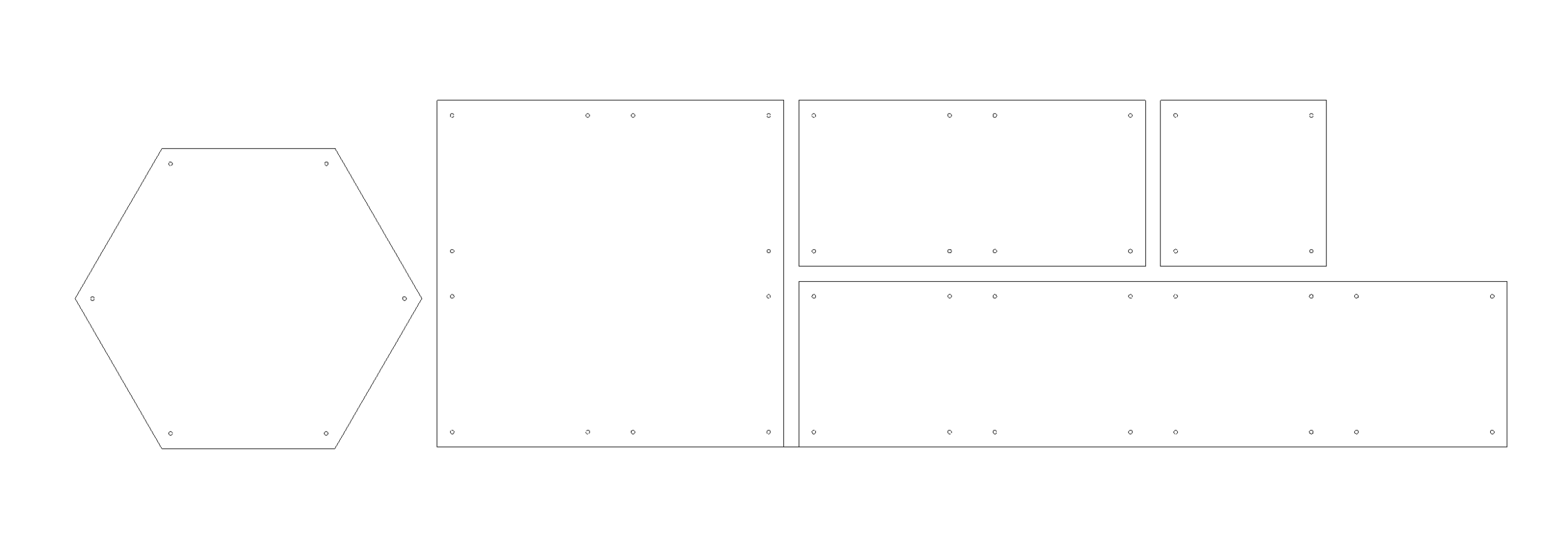

We currently have 5 shapes that make Stage Skins:

Honeycomb 23” point to point and 19 3/4”H, Large Square 23” x 23”, Small Rectangle 11” x 23”, Large Rectangle 11” x 47”, Small Square 11” x 11”

Honeycomb 23” point to point and 19 3/4”H, Large Square 23” x 23”, Small Rectangle 11” x 23”, Large Rectangle 11” x 47”, Small Square 11” x 11”


Design

View and print our free design kit.

Visit our Design page for inspiration and then view and print out the Stage Skins design kit.

Installation

The tiles are made to hang freely off a bar, strut or wall system. Simply use zip ties and stage line to secure the first row of tiles. The connector plates line up the tiles to create a visually pleasing 1” space between each tile. Each connector is fastened with a machine screw and nut and just needs hand tightened. No tools required.


Compatibility

The small/large squares and the small/large rectangles are compatible with each other and are offered individually as a pack or grouped as a kit.

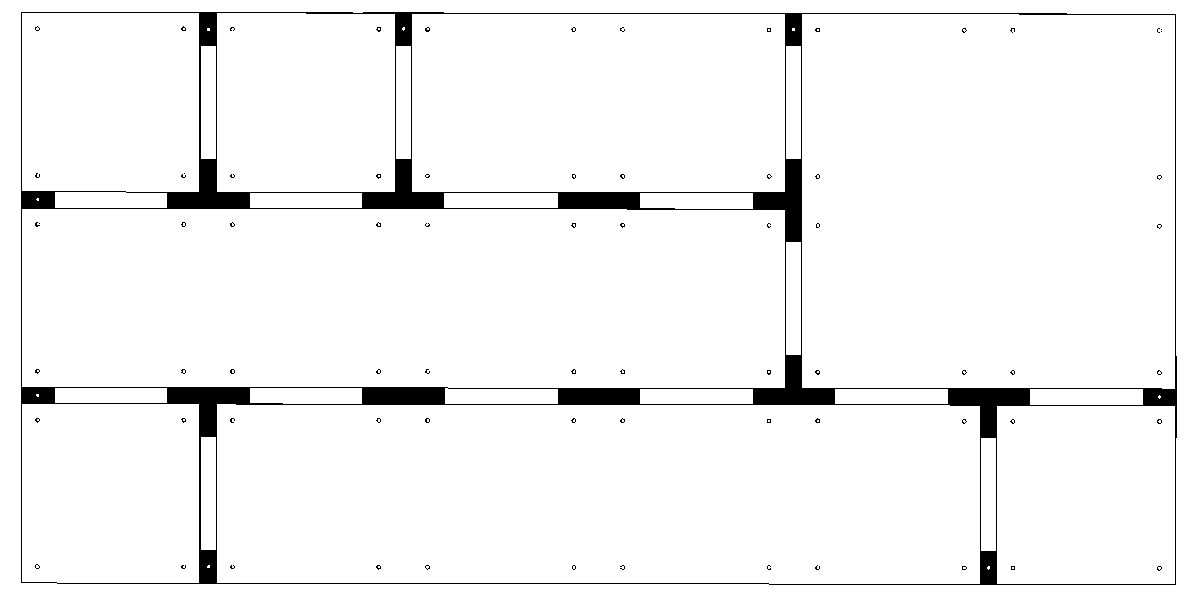

Front view of connector plates on tiles

Front view of connector plates on tiles

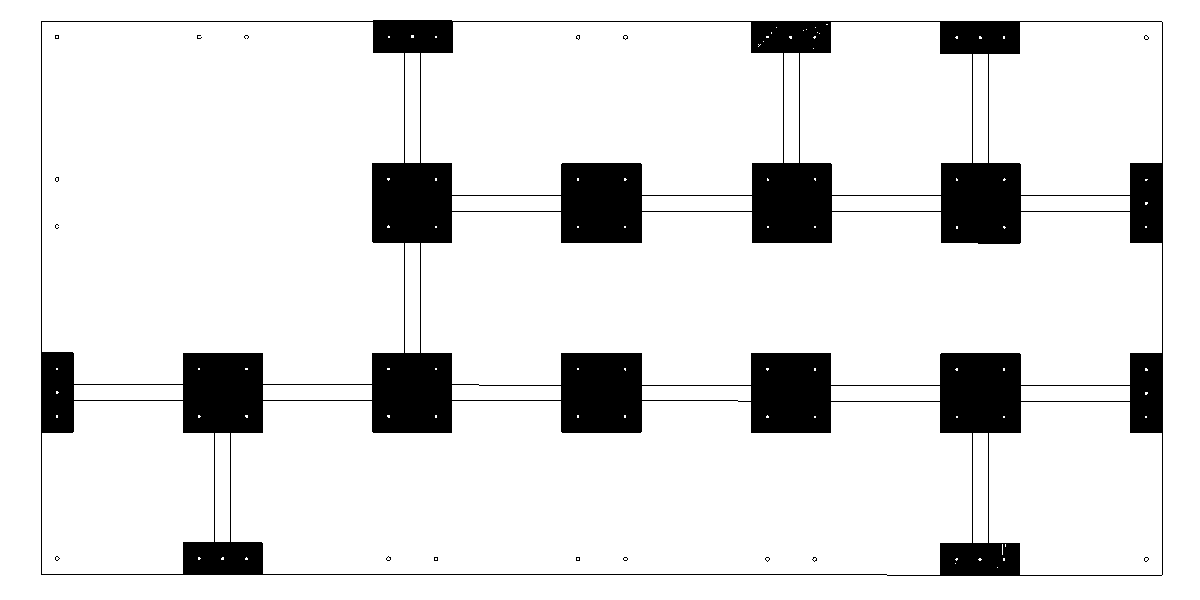

Rear view of connector plates on tiles

Rear view of connector plates on tiles


Square connector plate for middle connections, rectangle connector plate for edge connections.

Square connector plate for middle connections, rectangle connector plate for edge connections.




The Honeycomb design is it’s own individual shape and is offered in packs.

Purchase Options

Half Pack - square/rectangle

The Half Pack has 20 square foot of coverage in it and the quantity of tiles vary accordingly.

Half Pack All 4.png

full pack - square/rectangle

The Full Pack has 40 square foot of coverage in it and the quantity of tiles vary accordingly.

Montage Kit 4 Pack.png

Build Your Own Kit - square/rectangle

This kit is composed of 4-12 packs of the square/rectangle tiles. It gives you the option to select the shape of each pack in any combination you choose. These packs provide a 10% savings vs. purchasing the full packs individually.

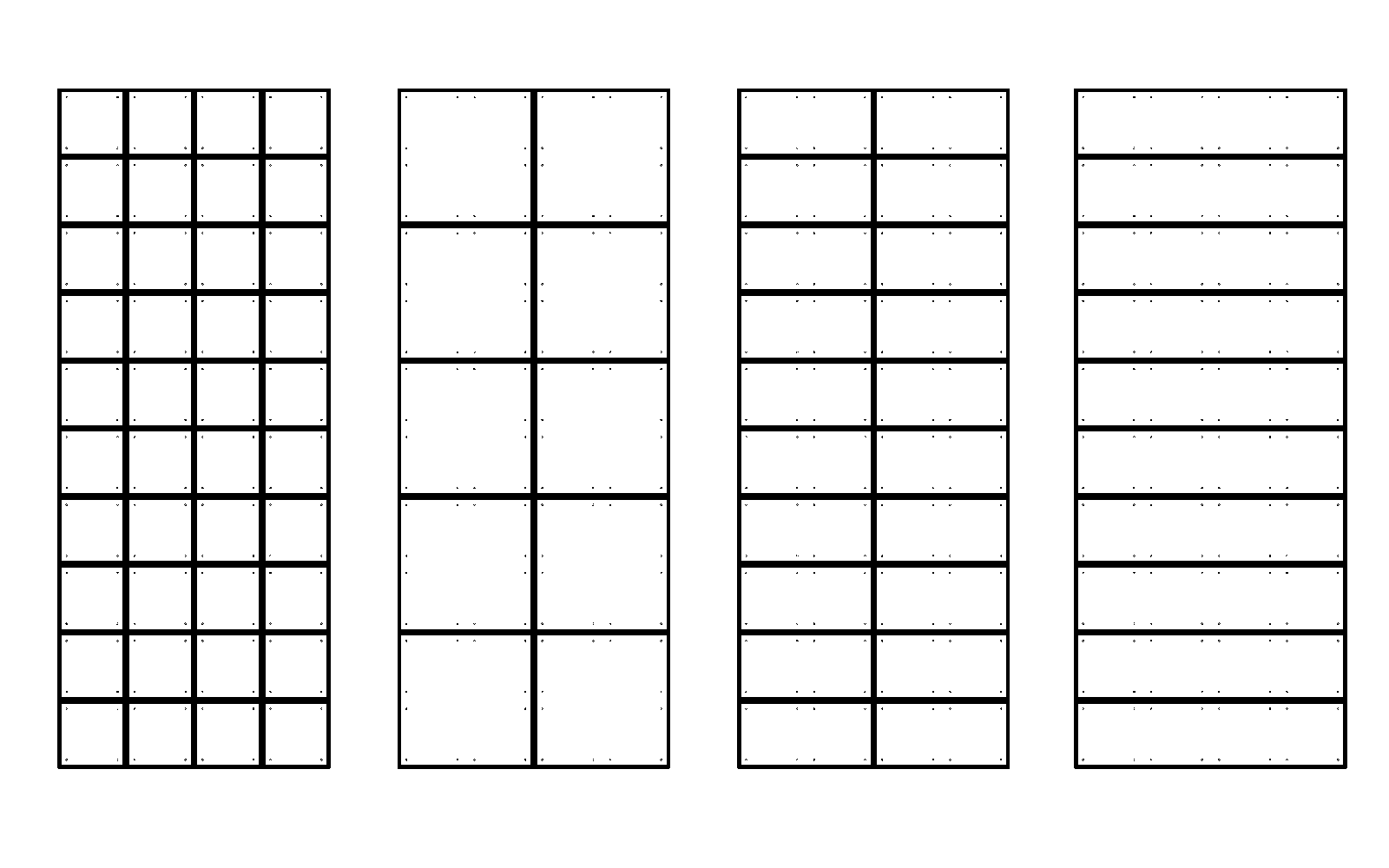

Montage kit - square/rectangle

1 kit many designs. The Montage Kit is composed of the small/large squares and the small/large rectangles. The kit is available in 5 different sizes and is the best value as it provides a 15% savings vs. purchasing the full packs individually.

Honeycomb

The Honeycomb design is offered in a Half and Full Pack.

Half Pack = 6 tiles  Full Pack = 12 tiles

Half Pack = 6 tiles

Full Pack = 12 tiles

The Honeycomb coverage is a bit irregular and can take a minute to figure out how many tiles you need. Below are directions on how to calculate the Honeycomb. Please feel free to message us with your set dimensions and we will tell you how many packs you need.

The Honeycomb coverage is a bit irregular and can take a minute to figure out how many tiles you need. Below are directions on how to calculate the Honeycomb. Please feel free to message us with your set dimensions and we will tell you how many packs you need.


How to calculate Honeycomb

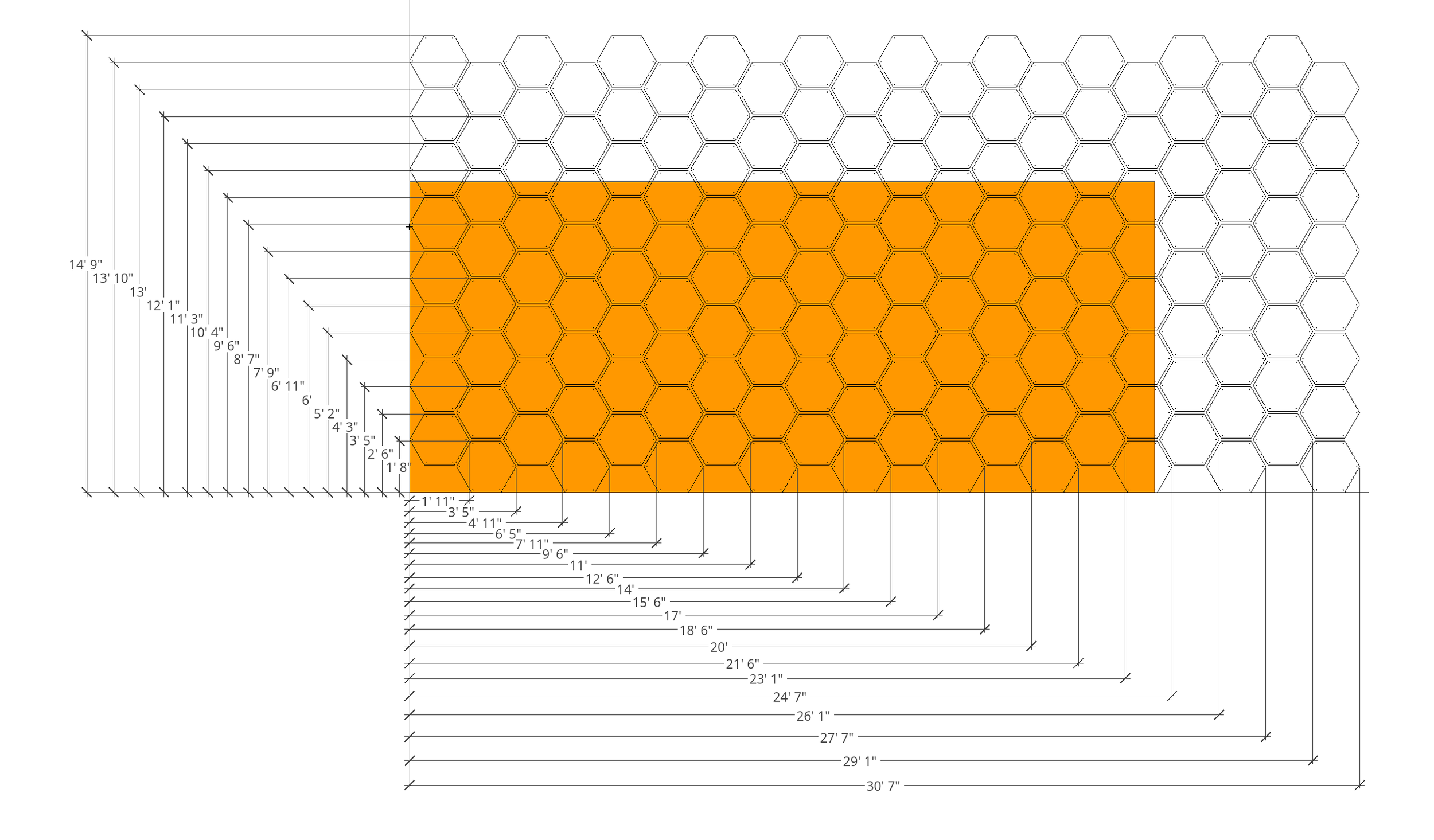

In the example above the orange rectangle represents an available stage set area that is 10’ high x 24’ wide. Find the measurement that is closest to your set size without going over. In the example the set is 10’ high so it rounds down to the 9’ 6” mark. The set space is 24’ wide so it rounds down to the 23’ 1” mark.

Count the number of columns and rows and multiply them to get the total number of tiles needed. In the example above there are 15 columns each with 5 rows. 15 x 5 =75 tiles.

Divide the number of tiles needed by 12 and round up to the nearest full or half pack. In the example above there are 75 tiles needed. 75 tiles / (12 tiles per full pack) = 6.25 packs This means the example needs 6 Full Packs and 1 Half Pack.

Hardware

All necessary fasteners, connector plates and zip ties are included with each pack and set.

Shipping and Sales tax

Free shipping on all backdrops to the continental United States. Hawaii and Alaska will be quoted at a discounted rate. Sales tax for Ohio non tax exempt customers.

We will ship your order out just as quick as we can but please allow up to 3 weeks for us to fulfill your order during this product launch as we build inventory and logistics. If you need your set sooner, please message us for the current lead time. Thank you!
